Product

WB2

WB2

Core parameters and applicable operating conditions of mechanical seals for pumps (commonly PTFE bellows single-end balanced type).
Learn More

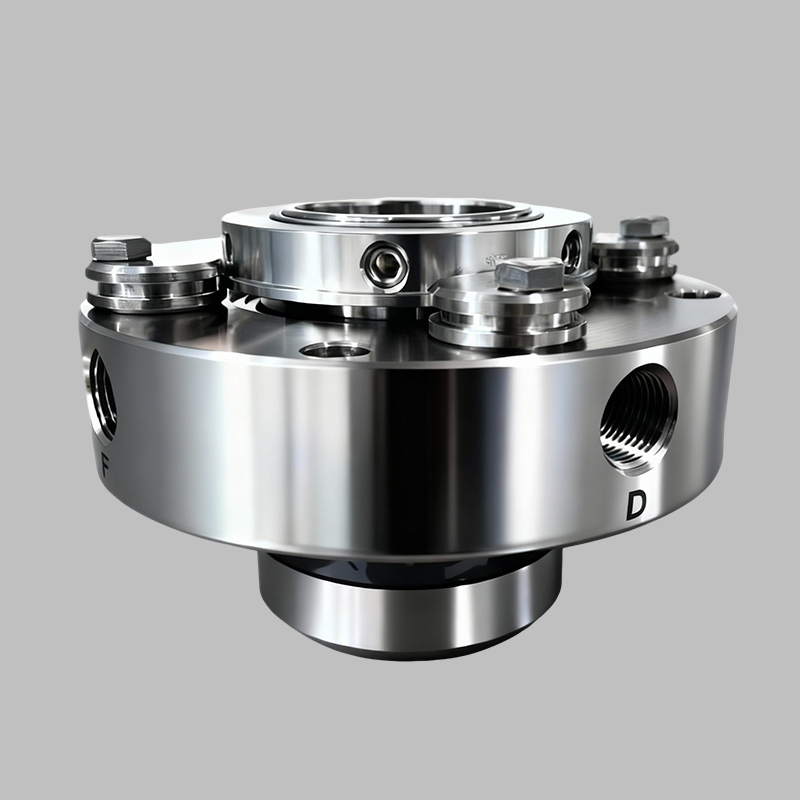

MY100

MY100

Built-in single-end face, multi-spring, unbalanced type, suitable for centrifugal pumps/chemical pumps
Learn More
MY

MY

Typical technical parameters and applicable operating conditions of MY series (internal single-end face, multi-spring, unbalanced type) pump mechanical seals (compliant with ISO3069 and DIN24960 standards).
Learn More
M152B

M152B

M152B (commonly PTFE bellows single-end balanced type pump mechanical seal)
Learn More

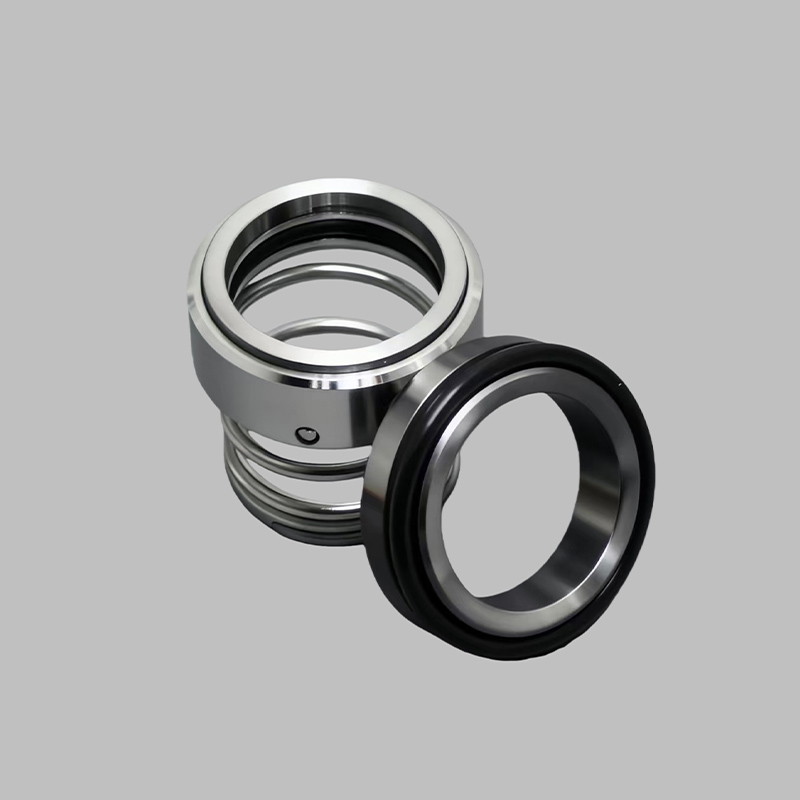

M117U

M117U

Mainstream technical parameters and applicable operating conditions of M117U (industry-common single-end face, multi-spring, unbalanced, arbitrary rotation type) pump mechanical seals
Learn More

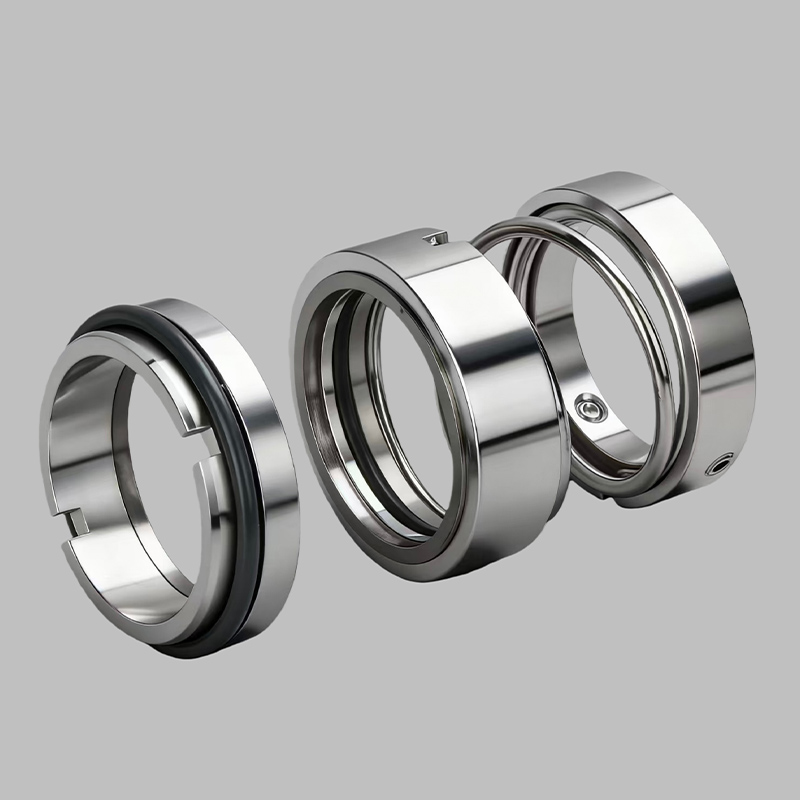

M104

M104

Typical industry parameters and applicable operating conditions for M104U (104U) pump mechanical seals
Learn More
FAQ

Frequently Asked Questions

faq
- Static sealing surface leakage: Check if the stationary ring seals (O-rings, V-rings) are aged, deformed, or missized. Replace with seals of the same specifications that are resistant to the medium and temperature. If the clearance between the stationary ring and the gland is too large, the stationary ring needs to be re-machined or replaced.
- Dynamic sealing surface leakage: Check if the sealing end faces of the dynamic and stationary rings have scratches, wear, or chipping. Minor scratches can be repaired by grinding; for severe scratches, replace the sealing ring directly. Also, confirm if the spring compression is appropriate. If insufficient compression, add gaskets; if excessive compression, reduce the number of gaskets.
- Leakage at the bushing-shaft mating point: Check if the bushing seal is damaged or if the clearance between the bushing and the shaft is too large. Replace the seal or re-grind the bushing.
- Excessive end face wear: If caused by particulate impurities in the medium, a filter needs to be installed; if caused by insufficient lubrication, a self-lubricating seal such as an impregnated graphite ring can be used, or an external flushing fluid (such as a clean liquid of the same medium) can be introduced.
- Shaft sleeve wear: Replace the shaft sleeve with one made of wear-resistant material, and adjust the coaxiality of the sealing cavity and the shaft to avoid uneven wear.
- Overheating of the sealing cavity: Check for blockages in the cooling system and clean the cooling pipes. If the medium temperature itself is too high, use high-temperature resistant sealing materials (such as silicon nitride ceramic rings or fluororubber sealing rings).
- Poor end-face contact due to spring failure: Replace fatigued or corroded springs with corrosion-resistant spring materials such as stainless steel, and ensure uniform spring compression.
- Coaxiality deviation: Recalibrate the coaxiality of the pump shaft and motor shaft, and adjust the radial runout of the sealing cavity and shaft to within the allowable range.
- Loose parts: Check whether the gland bolts and drive pins are loose. Tighten the bolts evenly to the specified torque, and replace worn drive pins.
- Material incompatibility with the medium: Replace the sealing material according to the characteristics of the medium (e.g., Hastelloy or PTFE for corrosive media; silicon carbide for high-temperature media).
- Improper installation: Strictly follow the installation specifications to avoid impact or scratches on the sealing surface and ensure that no impurities enter the sealing cavity during installation.
decorate
Looking for a trusted mechanical seal supplier for your global projects?

Contact Us

Our factory has extensive export experience, and our products meet ISO standards. We offer a one-stop service from product selection to after-sales support, including on-site installation guidance. Whether you need small samples or large orders, we can meet your needs. Send us an inquiry today to discuss your project details and get a sample quote.
